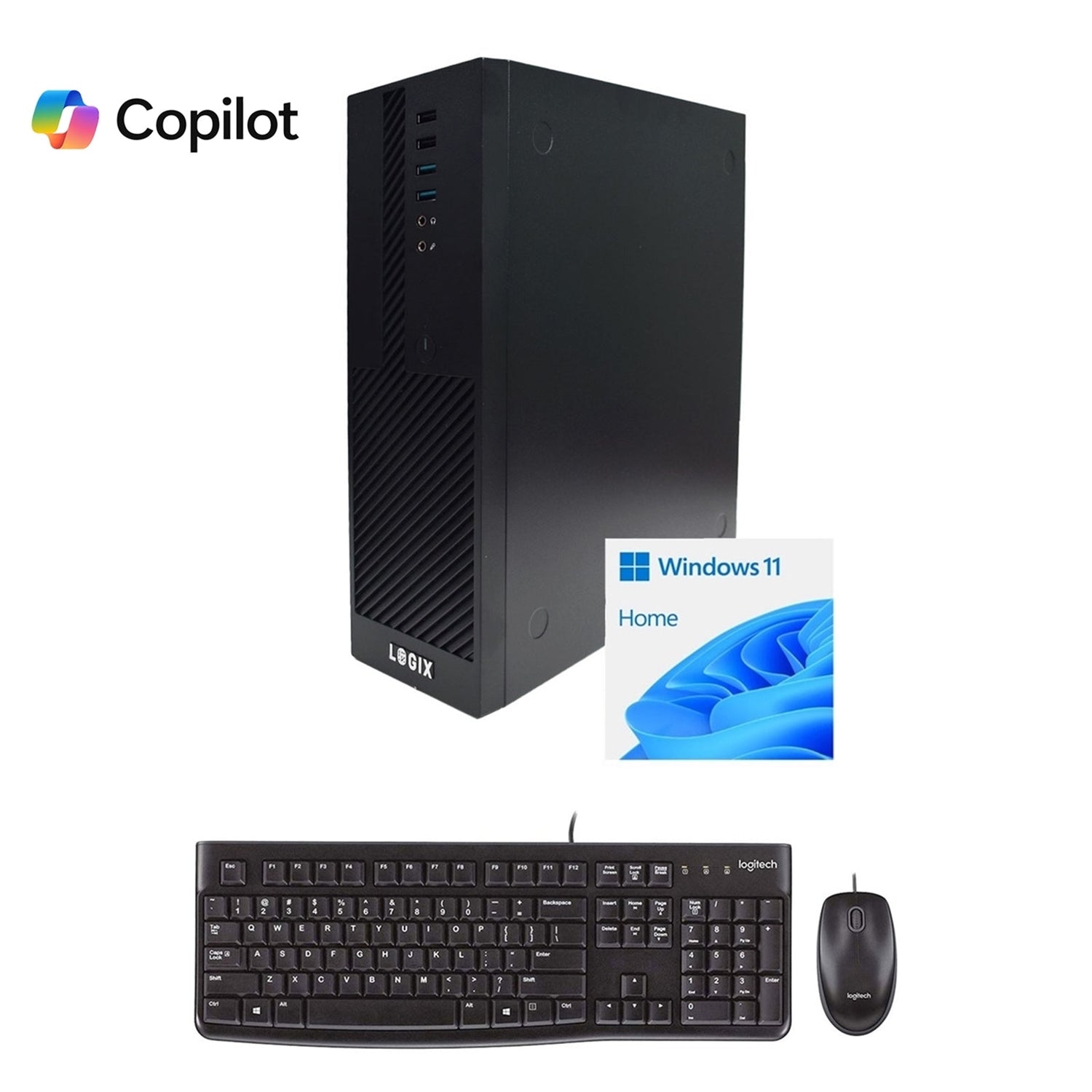

LOGIX S4-516H Small Form Factor Home PC
The LOGIX S4-516H is a powerful, discreet home PC designed for work, study, and entertainment in a compact, space-saving chassis. With fast performance, enhanced security features, and quality components, it delivers a smooth, reliable computing experience for modern home users.
Powerful, Compact & Built for Everyday Use
The LOGIX S4-516H combines strong performance with a small form factor case that fits neatly on or under your desk. It is ideal for:
- Large documents and reports
- Online meetings and web browsing
- Everyday home and entertainment tasks
Enjoy reliable speed and generous storage capacity without sacrificing valuable workspace.
Fast, Efficient Performance
Handle multitasking and demanding applications with ease:
-
Processor: 14th Gen Intel Core i5-14400
- 10 cores / 16 threads
- 3.50GHz base clock, up to 4.70GHz turbo
-
Memory: 16GB Kingston DDR4 RAM (upgradeable to 64GB)
-
Storage: 1TB Kingston PCIe 4.0 NVMe M.2 SSD
- Fast load times for programs and files
Secure, Clean & Ready to Use
The LOGIX S4-516H is built with cyber security and ease-of-use in mind:
-
Wired-only internet connection for enhanced protection
-
Windows 11 Home preinstalled, updated, and bloatware free
- Includes Logitech MK120 wired keyboard and optical mouse so you can get started immediately
Quality Craftsmanship & Long-Term Reliability
Hand-built in the UK using world-renowned components, this PC is designed for durability and future-proofing:
- Robust LOGIX small form factor chassis
- Clear Quick Start Guide for easy setup
-
3-year warranty with parts and collection included (UK mainland only)
Enjoy years of stable, secure performance backed by comprehensive support.
Key Features
- Discreet LOGIX small form factor case balancing compact size and efficient cooling
- 14th Gen Intel Core i5 processor (10 cores, 16 threads, 3.50GHz base, 4.70GHz turbo)
- 16GB Kingston DDR4 3200MHz memory (expandable to 64GB)
- 1TB Kingston PCIe 4.0 NVMe M.2 SSD (up to 6000MB/s read, 4000MB/s write)
- Wired-only internet connection for enhanced cyber security
- Windows 11 Home preinstalled and updated, with no bloatware
- Intel UHD Graphics 730 with DisplayPort and HDMI outputs
- Logitech MK120 wired keyboard and mouse included
- Hand-built in the UK with a 3-year parts and collection warranty (UK mainland only)
Technical Specifications
System Overview
| Component |
Specification |
| Operating System |
Microsoft Windows 11 Home 64-bit English OEI DVD, installed and up to date, no bloatware |
| Processor |
Intel Core i5-14400, 10 cores / 16 threads, 3.5GHz base, up to 4.7GHz turbo, Raptor Lake Refresh, 20MB cache, Socket LGA1700 |
| Memory (RAM) |
Kingston Technology 16GB DDR4 3200MHz (2 x 8GB, CL22, 1.20V), upgradeable to 64GB DDR4, Intel XMP support |
| Storage |
Kingston NV3 (SNV3S/1000G) 1TB NVMe M.2 SSD, PCIe 4.0, 2280, up to 6000MB/s read, 4000MB/s write, 160 TBW, 1,500,000 hours MTBF |
| Additional Drives |
No additional hard drive fitted |
| Optical Drive |
No optical drive fitted |
| Graphics |
Intel UHD Graphics 730 (on-chip) |
| Case |
LOGIX small form purpose-built robust chassis |
| Power Supply |
300W TFX pre-fitted PSU |
| Warranty |
3 years parts & labour, including collect and return (UK mainland only) |
Graphics
| Feature |
Specification |
| Graphics Base Frequency |
300 MHz |
| Max Dynamic Frequency |
1.40 GHz |
| Execution Units |
32 |
| Outputs |
DisplayPort 1.4b, DisplayPort 1.4a, HDMI 2.1 |
| Max Resolution (DisplayPort) |
7680 x 4320 @ 60Hz |
| Max Resolution (HDMI) |
4096 x 2160 @ 60Hz |
| Dedicated GPU |
No separate graphics card fitted (uses Intel on-chip graphics) |
Motherboard
Gigabyte H610M S2H V3 DDR4 Ultra Durable Motherboard (Micro-ATX)
| Feature |
Specification |
| Socket |
Intel LGA1700 |
| Memory Slots |
2 x DDR4 slots |
| M.2 Slots |
1 x M.2 Socket 3 (type 2280/2260, PCIe 3.0 x4/x2 SSD support) |
| SATA Ports |
4 x SATA 6Gb/s connectors |
| LAN |
GbE LAN with bandwidth management for improved latency and responsiveness |
Expansion Slots
| Slot Type |
Details |
| PCI Express x16 (CPU) |
1 x PCIe 4.0 x16 |
| PCI Express x1 (Chipset) |
1 x PCIe 3.0 x1 |
Rear I/O Ports
| Port Type |
Quantity |
| PS/2 keyboard/mouse |
1 |
| D-Sub (VGA) |
1 |
| DisplayPort |
2 |
| HDMI |
1 |
| USB 3.2 Gen 1 |
2 |
| USB 2.0/1.1 |
4 |
| RJ-45 Ethernet |
1 |
| Audio jacks |
3 |
Internal Headers & Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 2 x system fan headers
- 1 x M.2 Socket 3 connector
- 4 x SATA 6Gb/s connectors
- 1 x RGB LED strip header
- 1 x front panel header
- 1 x front panel audio header
- 1 x speaker header
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (for GC-TPM2.0 SPI modules)
- 1 x serial port header
- 1 x Clear CMOS jumper
- 1 x chassis intrusion header
Connectivity & Networking
Front Panel Connections
- 2 x USB-A 3.0
- 2 x USB-A 2.0
- 3.5mm HD microphone
- 3.5mm HD audio
Rear Connections
- 2 x PS/2
- 1 x VGA (D-Sub)
- 2 x DisplayPort
- 1 x HDMI
- 2 x USB-A 3.2 Gen 1
- 4 x USB-A 2.0
- 1 x RJ-45 Ethernet
- 3 x 3.5mm audio jacks
Wired Networking
- Realtek 1Gbps GbE LAN
- Network bandwidth management to improve latency and maintain low ping times in busy LAN environments
Wireless Networking & Bluetooth
TP-Link Archer TX20E AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter:
-
Wireless Standards (5 GHz):
- IEEE 802.11ax/ac/n/a
-
Wireless Standards (2.4 GHz):
- IEEE 802.11ax/n/g/b
-
Bluetooth:
- Bluetooth 5.2
-
WLAN Signal Rates:
- 5 GHz:
- 11ax: Up to 1201 Mbps (dynamic)
- 11ac: Up to 867 Mbps (dynamic)
- 11n: Up to 300 Mbps (dynamic)
- 11a: Up to 54 Mbps (dynamic)
- 2.4 GHz:
- 11ax: Up to 574 Mbps (dynamic)
- 11n: Up to 300 Mbps (dynamic)
- 11g: Up to 54 Mbps (dynamic)
- 11b: Up to 11 Mbps (dynamic)
Chassis & Cooling
| Feature |
Specification |
| Type |
LOGIX small form purpose-built robust chassis |
| Drive Bays |
5.25" x 0, 3.5" x 1, 2.5" x 2 |
| Front I/O |
2 x USB 3.0, 2 x USB 2.0, HD Mic, HD Audio |
| Cooling |
1 x 80mm fan included |
| Dimensions |
321mm (W) x 95mm (H) x 283mm (D) |
| Package Weight |
6.9 kg |
Included Peripherals
- Logitech MK120 wired keyboard
- Logitech wired optical mouse
The LOGIX S4-516H delivers a balanced blend of performance, security, and compact design, making it an ideal home PC for users who need a powerful yet discreet system that is ready to go out of the box.
